Feature

1. 3 stage equalization regulate,by adjusting knob to adjust the reverb depth and delay effect.

2. 12-channel.

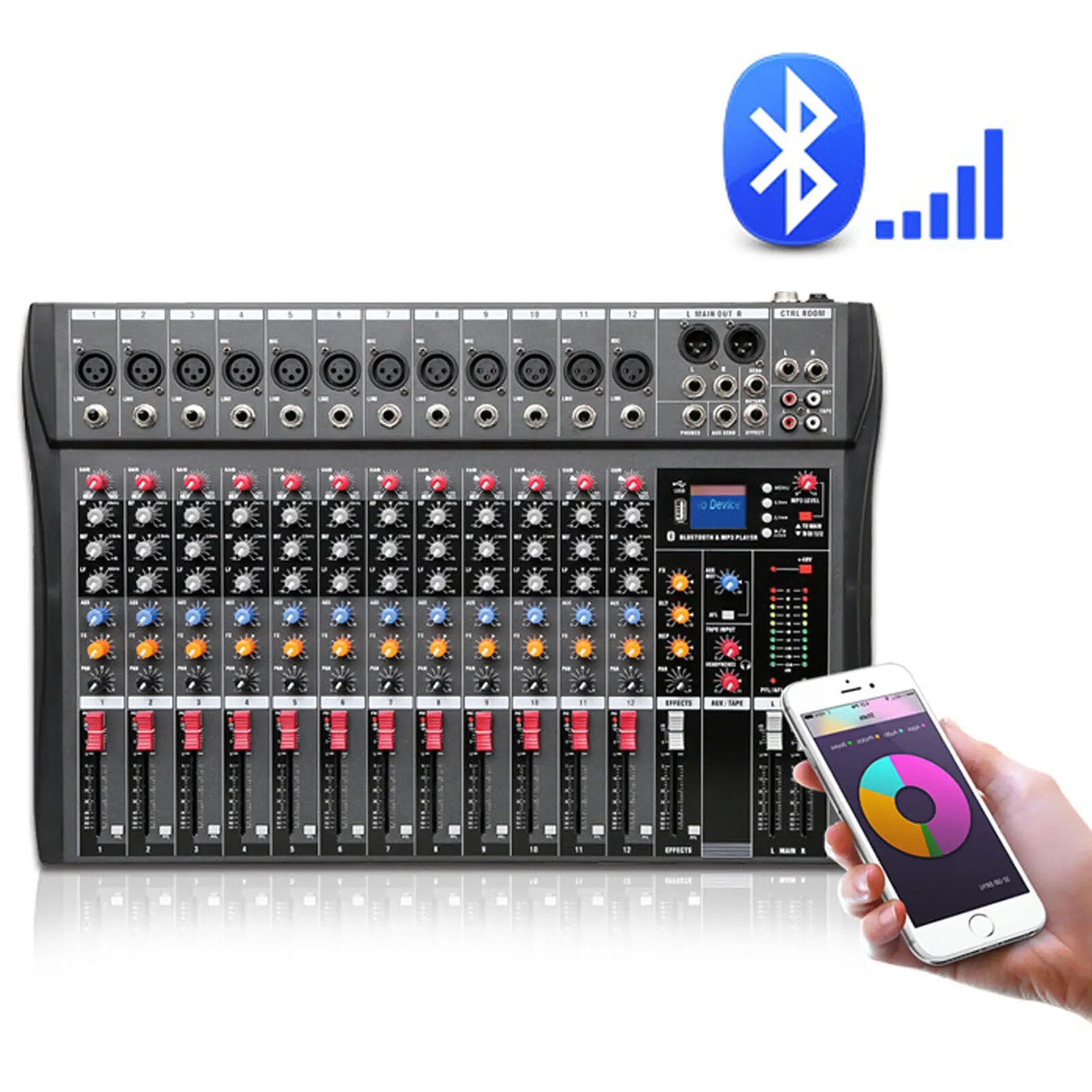

3. Bluetooth function to support wireless docking of most Bluetooth-enabled electronic devices.

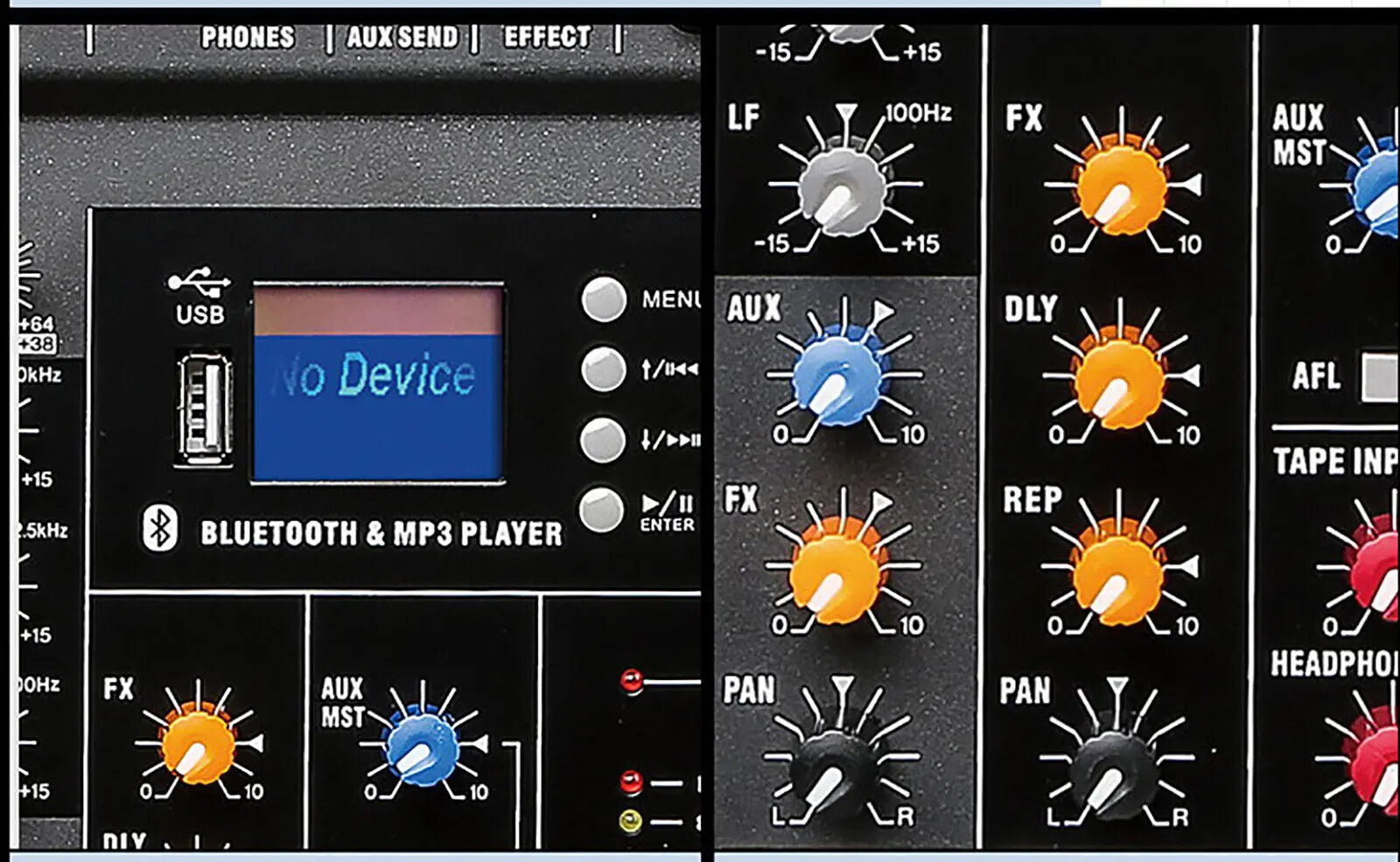

4. USB slot，it can be connected to USB flash disk or MP3 and other portable audio equipment.

5. There are 6 modes of music: nature, P0P, rock, jazz, classical, country.

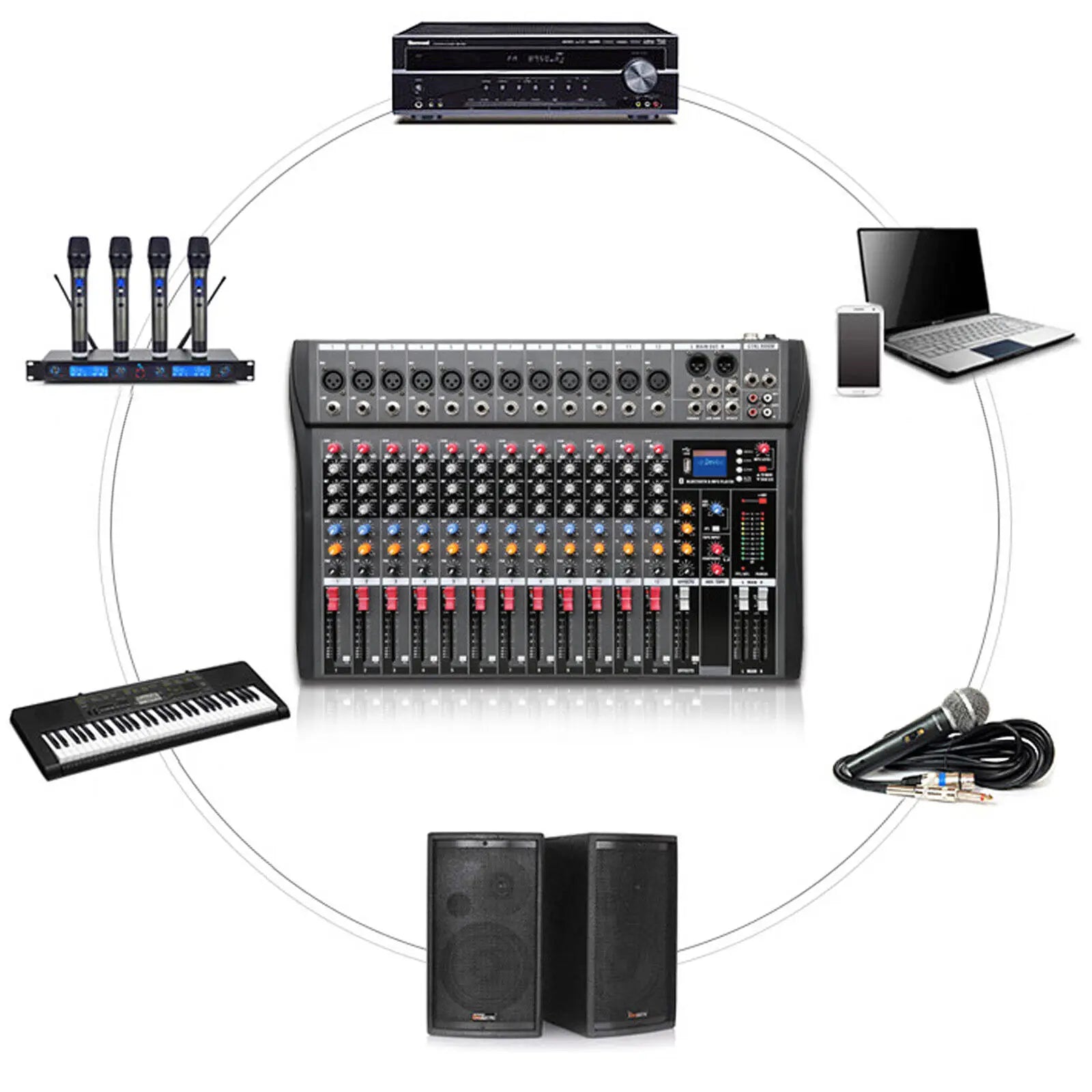

6. Support to conect with wired/wireless/capacitor microphone, applicable to the family KTV, campus speech, meeting etc.

7. Ultra low noise mix head amp design.

8. Analog effect processor.



Specification

1. Channel: 12 channels

2. Maximum input level of microphone: +24dBu

3. Maximum input level of line: +24dBu

4. Maximum input level: XLR+26dBu

5. Frequency response: 20Hz-30kHz±0.5dB

6. Max Input Power: 15W

7. THD+N: ＜0.01%

8. Crosstalk (1kHz): > 85dB

9. Noise (22Hz to 22KHz): equivalent input noise -122dbu, residual output noise < -90dbu

10. Mono/Stereo channel EQ:

High frequency, broom type, +/-15db, 12KHz

Low frequency, broom type, +/-15db, 80KHz

Mid-high frequency, peak type, +/-15db, 2.5KHz

11. Mono

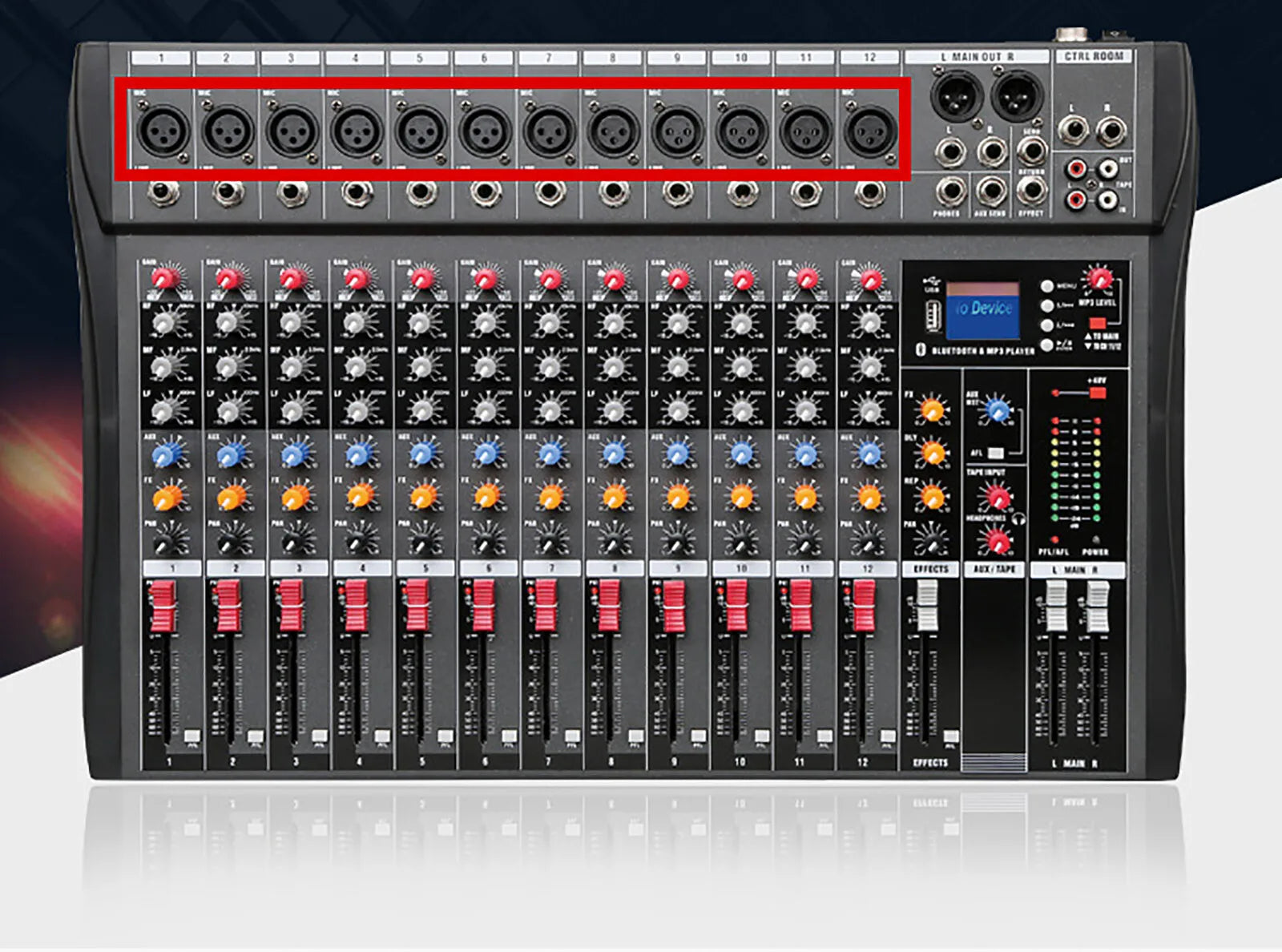

XLR: 2PIN, 2Kohm, -60~+14dbu sensitivity

TRS: tip, 10Kohm, -40~+14dbu sensitivity

XLR: +48V

Material: Metal+plastic

Size（approx）: 51.6cm x34cm x3.7cm

Weight: 5.9kg



Package included

1 x Mixing Console

1 x Power Cable

1 x User Manual



Note

1. Please allow a little error due to manual measurement.

2. Do not use this device near the TV, radio, stereo, cell phone or other electronic device, or it may cause noise.

3. Please use a soft dry cloth to clean the mixer.

4. Do not set any equalizer and level knob to the maximum position, otherwise it may cause acoustic feedback and damage the speaker.
