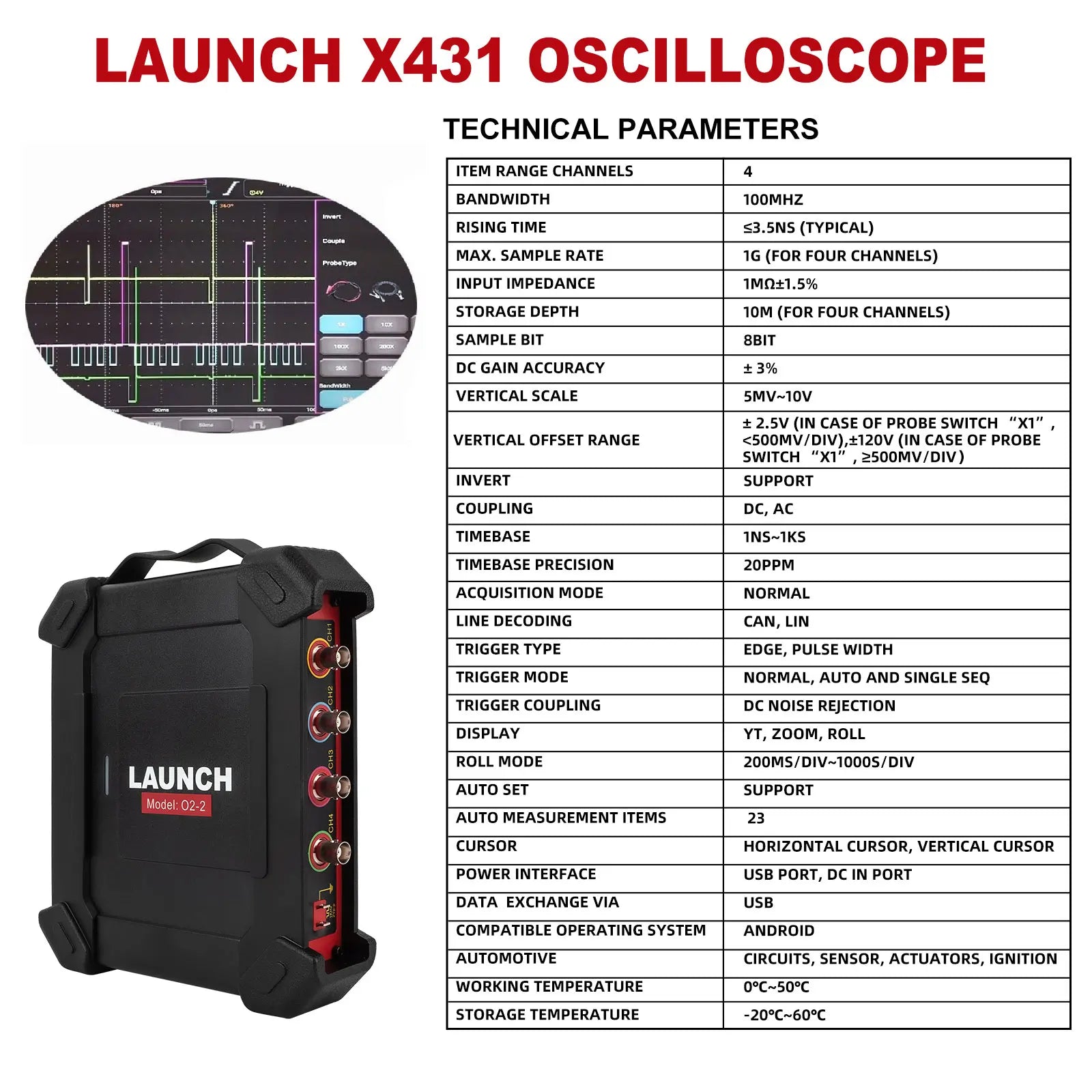

SPECIFICATIONS

Accuracy: ±3% accuracy for precise results

Advanced Protection: 200V overload protection ensures safety.

Bandwidth: 100 MHz bandwidth for high frequency signal analysis

Brand Name: LAUNCH

Certification: RoHS,CE

Channels: Four dedicated channels for comprehensive testing

Compatible with: x431 PRO ELITE, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 Pro3S+, X431 PAD V, X431 PAD 7, X431 IMMO Elite, X431 IMMO PLUS

Display: Sets the display mode of the waveform

Electronic: No

External Testing Certification: ce

Function: Provides all kinds of the testing applications on the automotive parts (including circuits,sensors,actuators,ignition etc.).

Hardware Version: newest Version

High-concerned chemical: None

Input Impedance: 1M ±1.5% for accurate signal measurements

Is Batteries Included: No

Item Type: Engine Analyzer

Item Weight: 5

Item name: LAUNCH O2 2 Scopebox

LAUNCH O2 2 Scopebox: Precision in Automotive Electrical Analysis

Material: platic

Measure: It provides 23 parametric measurement items

Model Name: LAUNCH X-431 Oscilloscope

Origin: Mainland China

Save: It allows you to save the current waveform as a reference waveform for future comparison

Software Version: newest Version

Use: Not Telecommunication

UserSetting: The following items are available: storage depth, factory reset, self-adjust (self-calibration)and save and recovery

Versatile Inputs: Single-ended BNC connectors with options for DC and AC coupling.
